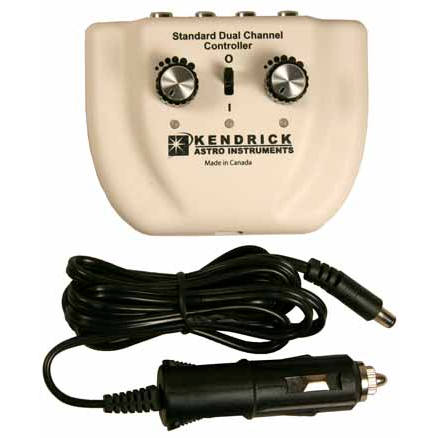

Kendrick Standard Dual Channel Controller

This controller has been introduced to replace our original, long standing Model VI controller. The Standard Dual Channel has a ton of new features but is really simple to use! As well, it can handle more power and use that power more efficiently! We are very excited about this newest addition to our Dew Remover System!

Features & Specifications:

• Rugged Plastic Case with modern styling.
• Zero to 100% heater control.
• Fused onboard. Auto Reset.
• On board protection from over current, over temperature, over voltage.
• LED overcurrent indication at both outputs.
• 10 amp capacity (5 amps per channel).*
• 6' detachable fused Power cord. Cord is fused at 7 amps.
• Reverse polarity protected.
• On/off switch (no other dew controller on the market has this).
• RFI (radio frequency interference) free. A critical feature for astro imagers!
• Pulse Width Modulation duty cycle control.
• 4 outputs, 2 for each control knob.
• LED Power on indicator for both outputs.
• Low voltage cut-off control with LED indication (a Kendrick standard!). IMPORTANT NOTE on this feature.
• Mosfet transistors built on board and on EACH output (no voltage drops!). Get the best possible performance out of your heaters!
• Velcro attachment. Parts included.
• 12 VDC operation.
• Dimensions: 4" x 3" x 1.35" (1.75" with knobs).
• 1 Year warranty

Extra Power Cords are available.. The controller does include a power cord, but some people like a spare cord and they are available for purchase. Product SKU: CDC-PC-BATT

* We have fused the power cord at 7 amps even though the controller is capable of amperages of 5 amps per channel (10 amps total). We do not recommend replacing the power cord fuse with a larger fuse as the power input socket is not rated for a higher amperage.
